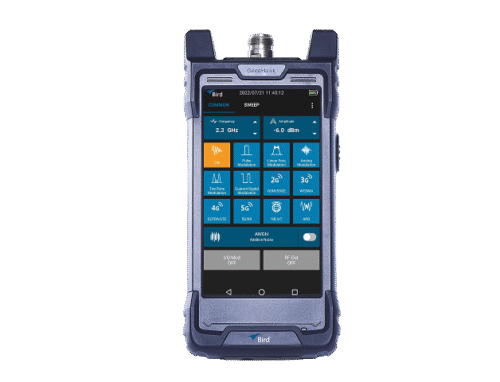

Handheld Signal Generator
The handheld signal generator (GH60) is characterized by its strong portability, making it suitable for on-site testing and convenient to carry during field test. It boasts excellent RF performance, supporting a wide range of general digital modulation formats. It covers standard mobile communication formats with a high dynamic range, making it a versatile tool for various applications. With a frequency range of up to 6 GHz, compact design, intuitive user interface, and precise signal generation capabilities, the GH60 is a reliable and flexible solution for professionals who require both mobility and performance.
Specifications
| Model | GH60 | GH180 |
|---|---|---|
| RF port | N -Female 50 Ω | |
| Frequency Range | 10MHz to 6GHz (Upgradeable from 300 kHz to 6.5 GHz.) | 10MHz to 6GHz (Upgradeable from 300 kHz to 6.5 GHz.) |
| Frequency Step | 0.1Hz | 0.1Hz |
| Frequency Accuracy | ±0.5ppm | ±0.5ppm |
| Power Range | -130dBm to +15dBm | -130dBm to +15dBm |
| Power Step | 0.1dB | 0.1dB |
| Power Accuracy | ±0.75dB @ Lev≥-80dBm ±1.5dB @ Lev<-80dBm ±2.5dB@Lev ＜ -110dBm | 10MHz ≤ f ≤ 6GHz:±1.5dB@ Lev ≥ -110dBm ;±2.5dB@Lev ＜ -110dBm 6GHz |
| Phase Noise | -119dBc/Hz(typ.) @1GHz -110dBc/Hz(typ.)@3GHz -104dBc/Hz(typ.)@6GHz | -124dBc/Hz(typ.)@1GHz 108dBc/Hz(typ.)@10GHz -102dBc/Hz(typ.)@18GHz |
| Digital Modulation | BPSK/ QPSK/ OQPSK/ 8PSK/ MSK/ FSK/ 16QAM/ 32QAM/ 64QAM/ 128QAM/ 256QAM/ ASK | |
| Analog Modulation | AM/FM/PM | |
| Two-Tone | DSB/USB/LSB | |
| Mobile Signal Modulation Type | GSM//WCDMA/TDD-LTE/FDD-LTE/NB-IoT/LoRa/5GNR | |
| Dimentions | 197×93×61 mm | |
| Weight | 0.9kg | |
| Model | GH60, GH180 |
|---|
