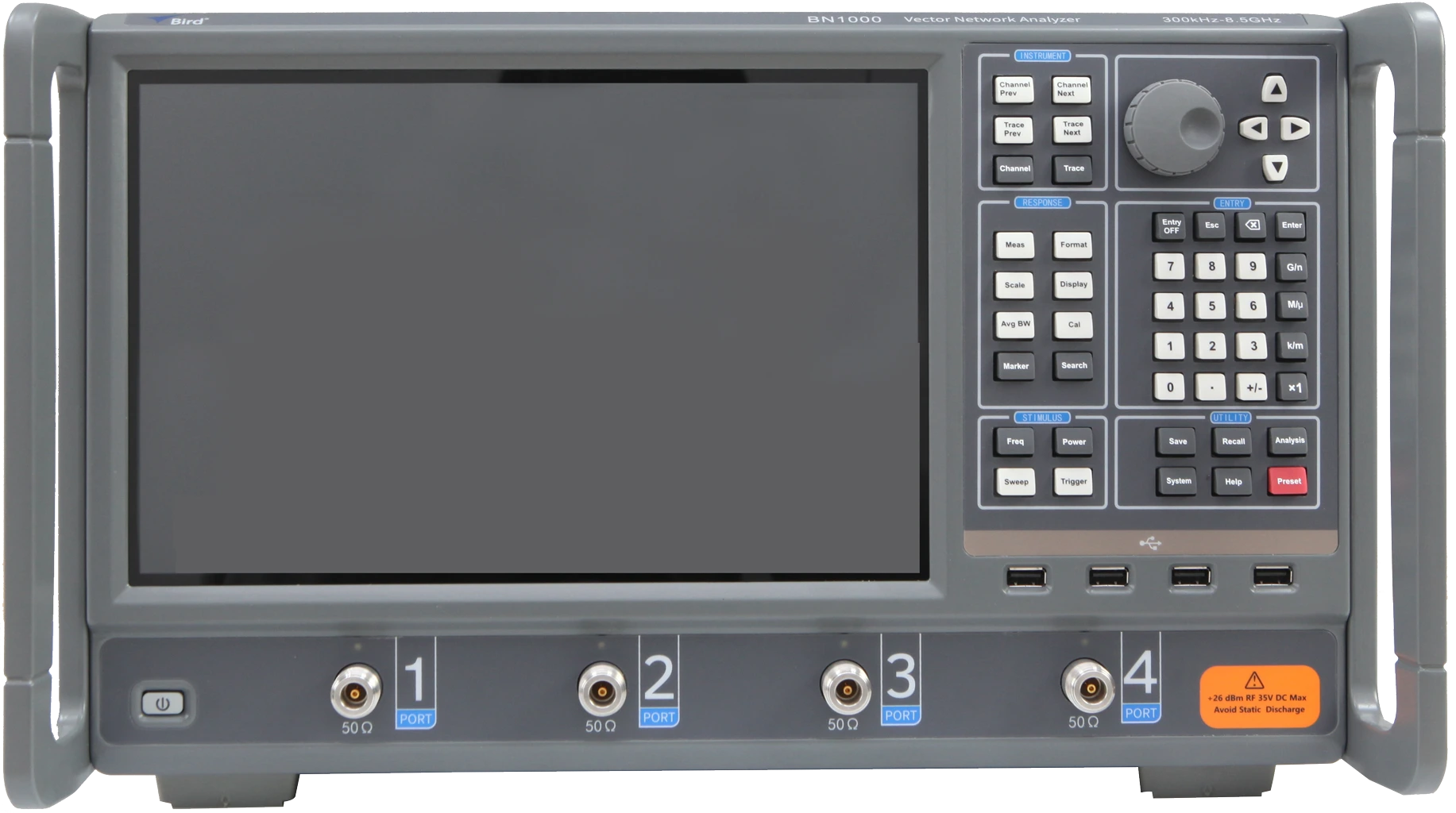

BN1000

Series pricing:

The BN1000 is a benchtop Vector Network Analyzer (VNA) that is affordable and powerful. It is made for RF testing in a number of industries, including telecommunications, semiconductors, universities, RF components, labs, and automation tests. This 2/4 port VNA offers a wide frequency range of up to 8GHz and high RF performance, making it suitable for testing a wide range of RF components and circuits.

The performance of RF devices and circuits can be assessed using the BN1000 VNA's numerous analysis options, which include time-domain analysis and circuit modeling features. The gadget also supports the widely used VISA communication protocol, making it simple to connect to other testing tools and enabling effective device-to-device communication. Additionally, the BN1000 VNA can be expanded to 4 ports for greater testing flexibility.

The BN1000 VNA is simple to use, has a lightweight and small design, and may be used on a tabletop, in a lab, or in a workshop. Additionally, it has built-in self-diagnostic and security features that guarantee dependable operation and accurate findings. The VNA includes remote control and data storage capabilities that enable users to manage the instrument and store data from a remote location. It also has an automatic calibration capability that may be used to increase measurement accuracy.

With a measurement speed of 42 microseconds per point and an extended dynamic range of more than 125dB, the BN1000 VNA is appropriate for quick and precise measurements. The trace noise is minimal (less than 2 mdB rms), and the directivity is high (above 45 dB). In addition, the instrument contains test ports, a USB I/O, a power button, an LCD touch screen (12.1 inches), and a power button for connecting to other devices and instruments.

‍

Benchtop Vector Network Analyzer (VNA)

No items found.

Overview

Resources

Frequency range

300kHz~8.5GHz

Large dynamic range

>125 dB @(IFBW=10 Hz),typ. 130 dB

Measurement speed

42 μs/point @(IFBW=500 kHz)

Low trace noise

2 mdB rms @(IFBW=3 kHz )

High effective directivity

> 45 dB

Support remote control

LAN

No items found.

No items found.

Key facts

Frequency range

300kHz~8.5GHz

Large dynamic range

>125 dB @(IFBW=10 Hz),typ. 130 dB

Measurement speed

42 μs/point @(IFBW=500 kHz)

Low trace noise

2 mdB rms @(IFBW=3 kHz )

High effective directivity

> 45 dB

Support remote control

LAN

Control elements

Features

Multiple analysis options, such as time domain analysis and circuit simulation function
Support for the standard VISA communication protocol
Efficient communication interface for multi-types testing instruments
Expandable to 4 ports for increased testing capabilities
High RF performance and a wide frequency range of up to 8GHz
Versatile and user-friendly interface for easy operation
Compact and lightweight design for benchtop use
Built-in self-diagnostic and protection functions
Auto-calibration for accurate measurements
Support for remote control and data storage

‍

Benefits

The BN1000 VNA offers a cost-effective solution for accurate RF testing
It is ideal for manufacturing and R&D engineers and supports multiple analysis options, such as time domain analysis and circuit simulation function
Its efficient communication interface makes it easy to interface with numerous types of testing instruments
With 4 ports, it allows for more comprehensive testing, allowing you to test more devices at once
User-friendly interface and built-in self-diagnostic functions ensure effortless operation and reliable results
The compact design makes it suitable for use in a lab, workshop, or on-site.
Auto-calibration and remote control functionality allows you to take accurate measurements, even in challenging environments, quickly.

‍
